SHK4018 Advanced UV Silicone Printer- Precision, Efficiency, and Eco-Friendly Technology for Superior Printing Performance
Home » Products » Silicone Printing Machine » SHK4018 Advanced UV Silicone Printer- Precision, Efficiency, and Eco-Friendly Technology for Superior Printing Performance

SHK4018 Advanced UV Silicone Printer- Precision, Efficiency, and Eco-Friendly Technology for Superior Printing Performance

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This UV printer combines cutting-edge technology with an eco-sustainable design philosophy, aiming to provide an efficient, stable, and environmentally friendly solution for silicone printing. After a series of quality control tests, such as alcohol resistance and abrasion tests, the long-term stability of the print quality is guaranteed, meeting the market’s demand for high-quality printing. The simple operation interface, including a one-click printing function, allows operators, even non-professionals, to easily get started, effectively improving work efficiency.
  • SHK-6018

  • SHK

Availability:
Quantity:

Our UV printer is a fusion of state-of-the-art technology and sustainable design principles, crafted to deliver a robust, eco-conscious solution for the silicone printing sector. Rigorous quality control assessments, including alcohol resistance and abrasion tests, affirm the printer’s ability to produce consistently high-quality prints. The user-friendly interface, featuring a one-click printing option, empowers operators of all skill levels to commence printing tasks with minimal effort, thereby streamlining workflow efficiency.

H98a82e4dffcb4f94ac3ed25be81c8fae4 8
21
11
133


The printer’s dimensions, spanning 1800CM in length and 60CM in width, coupled with the option for tailored length adjustments, provide the versatility needed for a variety of printing contexts and spatial requirements. This adaptability is a key factor in the printer’s suitability for a wide range of application scenarios.

Equipped with a KCMY-LC-LM-LK-LLK automatic color matching system and sophisticated eight-color processing, the printer excels at rendering intricate color gradients on silicone substrates. It also offers the flexibility to modify colors and image files, accommodating the unique preferences of different clients.


2


In the realm of energy conservation and environmental care, the printer stands out with its low-energy blueprint and energy-efficient components, which curtail power usage. It operates seamlessly on a standard 220V household electrical supply, eliminating the need for specialized electrical infrastructure. Our commitment to perpetual market analysis and product enhancement, fueled by customer insights, drives us to develop increasingly tailored silicone printing solutions. We are enthusiastic about joining forces with our clients to delve into the future of silicone printing, aiming to achieve a synthesis of high efficiency and superior print quality.



Print Size W 600mm * L 1800mm
Print Colors KCMY-LC-LM-LK-LLK
Number Of Nozzles 1
Print Height 1-100mm
Drop Height 10mm
Curing System LED UV Lamp
Printing Accuracy 300DPI、600DPI、900DPI、1200DPI、2400DPI
Lifting Function Intelligent Ink Car Lift
Can File Format Common Image Formats Such As TIFF, BMP, EPS, JPEG, etc
Ink System Negative Pressure Method
Print Speed 6-12 Square Hours
Spray Head Protection Intelligent Touch Detection Automatic Protection System
Electricity Requirement

Electricity Requirement

AC220 50HZ

Print Interface High Speed USB 3.0 Transmission Interface
Driver Software Microsoft Windows98/Me /2000 /XP/Win7
Working Condition Temperature 20-30, Humidity 30-70%

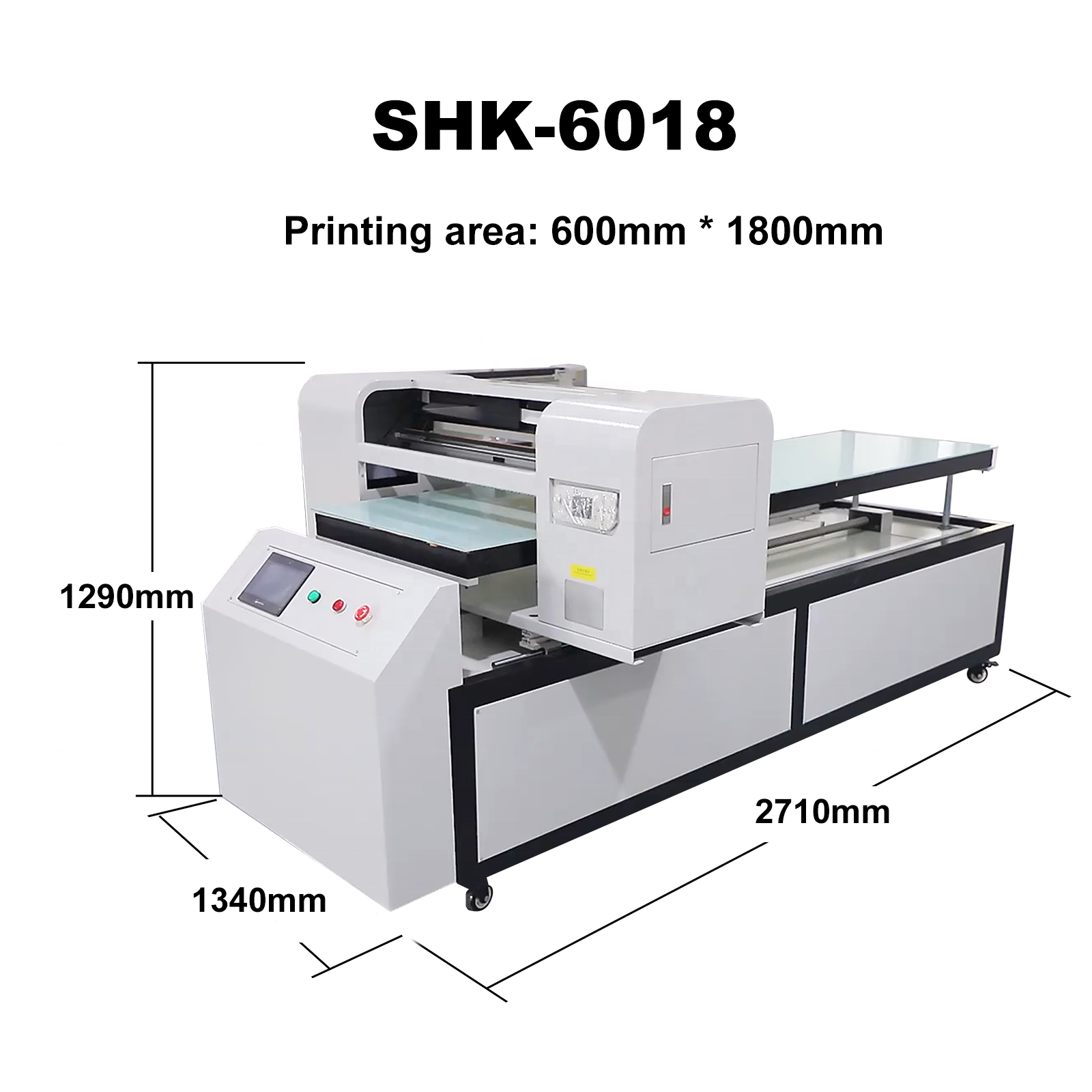

Equipment Size 2710mm*1340mm*1290mm
